5-Bedroom 2-Story Craftsman Home with Luxurious Master Suite (Floor Plan)
Specifications:
- 5,250 Sq Ft
- 5 Beds
- 4.5 Baths
- 2 Stories
- 3 Cars

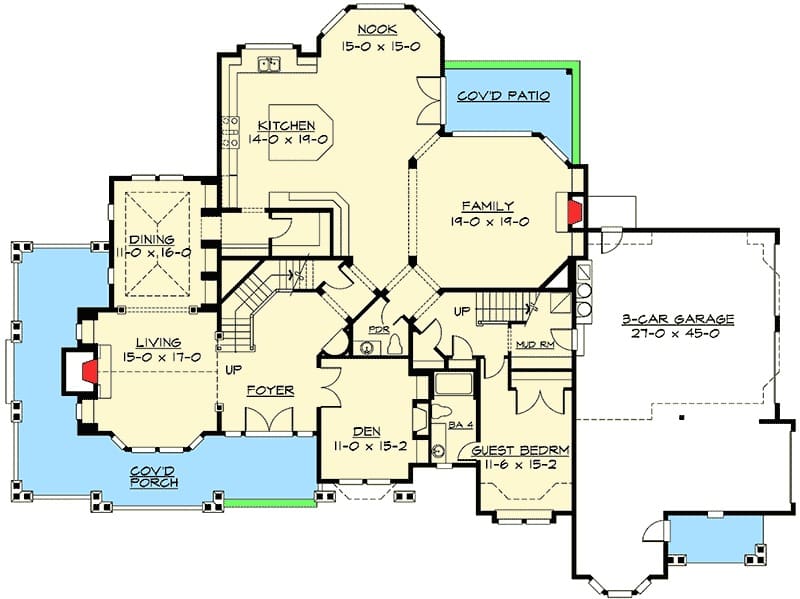

The floor plan begins with a spacious foyer that immediately establishes the home’s open flow.
The entry is wide enough to provide a welcoming transition from the wraparound front porch into the interior spaces.
From the foyer, the sightline leads directly to the living room, allowing a clear visual connection to the main social spaces.
This open design helps traffic move naturally and makes the house feel larger from the first step inside.
Living Room Placement and Connectivity
The living room sits centrally in the floor plan, directly accessible from the foyer.
It’s positioned to connect seamlessly to the dining area while maintaining a sense of separation for different activities.
The built-in wall along one side integrates storage without sacrificing square footage, providing functionality while maintaining the room’s open feel.
The location of the living room makes it the anchor of daily life, linking the main entrance, dining area, and kitchen in one cohesive zone.
Dining Room and Butler’s Pantry Flow
Adjacent to the living room, the dining room is strategically positioned for both casual and formal meals.
The floor plan includes a direct connection from the dining room to the kitchen through a butler’s pantry.
Before you fall in love with the perfect floor plan, take a moment to consider the financial side. Comparing mortgage rates, improving your credit score, and working with a reliable real estate agent can save you thousands. Look into home insurance, consider a home warranty, and plan ahead for refinancing. It all adds long-term value to your home.
This passage maintains efficiency in movement and workflow, allowing food preparation and service without crossing open living areas.
The placement ensures that entertaining flows naturally while also preserving privacy in the main living zones.
Kitchen and Breakfast Nook Layout
The kitchen is located at the rear of the main floor, offering a clear view of the breakfast nook and family room.
Its placement in the floor plan maximizes natural light and ensures that social and functional zones interact efficiently.
The island in the center of the kitchen provides workspace while keeping circulation paths open, allowing multiple people to move comfortably.
The breakfast nook, positioned next to large windows, creates a bright and casual dining area that seamlessly integrates with the kitchen.
Family Room Orientation
The family room is directly connected to the kitchen and breakfast nook, forming a continuous open space.
Positioned with a fireplace as the focal point, it occupies a central rear location in the floor plan, making it both a gathering area and a visual anchor.
The adjacency to the kitchen ensures that cooking, dining, and living activities coexist without obstruction.
Doors to the rear covered patio extend the space outdoors, enhancing the overall flow.
Rear Covered Patio and Outdoor Integration
The rear patio is placed at the back of the house, accessible from the family room.
Its position in the floor plan allows for easy indoor-outdoor movement and makes it an extension of the main living areas.
The covered design ensures usability in all weather conditions, while the adjacency to the kitchen and family room provides practical access for entertaining, dining, and everyday activities.
Master Suite Placement
Upstairs, the master suite occupies a primary position in the floor plan, offering privacy from the other bedrooms.
The suite includes a sitting area and fireplace, positioned to maximize space and comfort.
Its location at the rear or side of the home ensures quiet and views, while easy access to the master bath and closets maintains functional efficiency.
The layout supports both relaxation and separation from the active areas below.
Secondary Bedroom Layout
The remaining four bedrooms are arranged on the upper floor to provide both privacy and accessibility.
Each bedroom is sized to accommodate furniture comfortably and placed to minimize noise from common areas.
Hallways are centrally located to maintain balanced circulation and convenient access to shared bathrooms.
This layout ensures that each room functions independently while remaining connected within the upper-level zone.
Bonus Room Above Garage
A large bonus room is positioned over the garage, creating flexible space within the floor plan.
Its separation from the main bedrooms allows for quiet activities, and the placement over the garage optimizes structural design without adding to the main footprint.
The room can be finished as needed, and the open layout allows multiple configurations, such as a media room, playroom, or additional bedroom suite.
Three-Car Garage and Access
The three-car garage is located on the side of the house, with direct access to the interior through a hallway or mudroom.
Its placement supports easy vehicle storage while keeping functional zones—like laundry and entry—connected.
The garage’s location also maintains the visual balance of the front elevation, complementing the wraparound porch while ensuring the driveway and entry points remain convenient.
Stair Placement and Vertical Flow
Stairs are strategically located to connect the main floor with the upper level without interrupting the primary living spaces.
The floor plan ensures that the staircase provides a smooth transition from the public areas below to the private bedrooms above.
Its positioning maintains efficient traffic patterns and preserves wall space in the living and dining areas.
Roof Pitch and Structural Layout
The roof features an 8:12 pitch with truss construction, supporting both the aesthetic appeal of the Craftsman style and the practical layout of the interior spaces.
The truss system allows for vaulted ceilings in select areas and maintains the integrity of open rooms.
Its placement also ensures consistent structural support for upper-level bedrooms, the master suite, and the bonus room above the garage.
The overall floor plan emphasizes balance between open communal spaces and private areas.
The first floor prioritizes connection and accessibility with the living room, dining area, kitchen, and family room flowing naturally together.
The upper floor is designed for privacy, with the master suite, secondary bedrooms, and bonus room arranged for maximum comfort.
Outdoor spaces are seamlessly integrated with indoor zones to create a continuous living experience.
This Craftsman home plan demonstrates thoughtful spatial planning at every level.
From the foyer to the family room, from the upstairs bedrooms to the bonus room, each area is positioned to optimize circulation, privacy, and comfort.
The layout maximizes natural light, functional flow, and flexibility, making it a well-organized plan for families seeking both luxury and efficiency.
Every room’s placement, from the porch to the garage and master suite, reflects intentional design that supports daily life while maintaining a cohesive overall floor plan.
